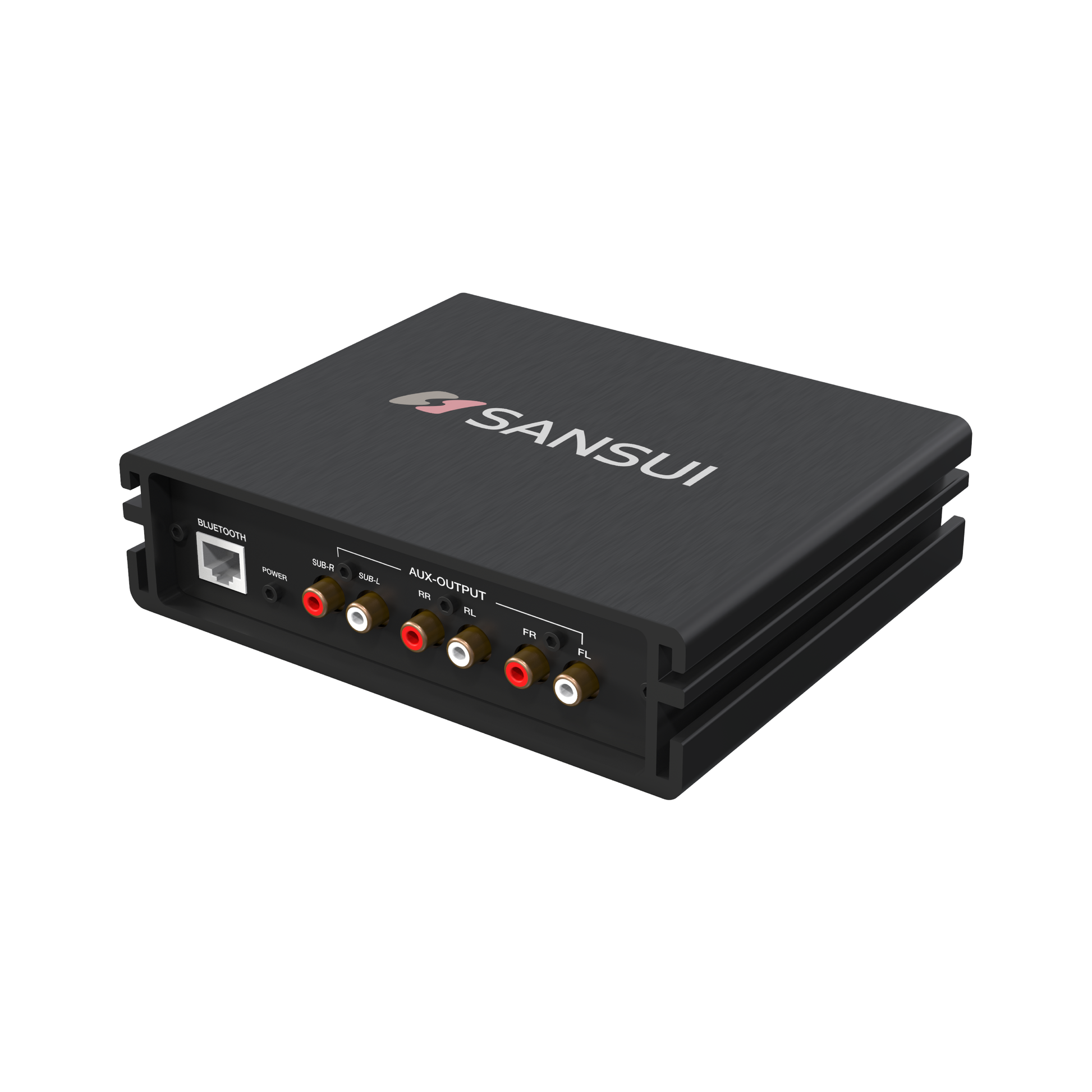

Sansui SDS1046
$99.00
Description
Sansui SDS1046 DSP provides an easy way to tune your car’s audio with its built-in 10 band equalizer and presets.
Specifications
- Supports 15 sets of preset sound effects
- 4-channel high-level input, 4-channel low-level input, supports digital Bluetooth
- 6-Channel low-level output
- High pass / low pass function
- Support PC, Android, and iOS software tuning
- 10 Band Equalizer
- Phase and delayed adjustment for each channel.
Product Data
| Dynamic Range(RCA Input) | ≥100dB |
| S/N(RCA Input) | ≥90dB |
| THD | ≤0.05% |
| Frequency Response | 20Hz~20KHz |
| Input Impedance | High-Level Input:330Ω， Low-Level Input:330Ω |
| Low-level Output Impedance | 100Ω |
| Signal Input | RCA Input:5.5Vpp; High Level:26Vpp，RCA Output:5.5Vpp |
| Power | DC9V-16V |
| REM Input | High-Level Input Signal: FL+/FL-or ACC control cable |
| REM Output | +12V Startup Voltage （0.1A） |
| Standby Power | ≤0.1W |
| Gross Weight | Approx. 0.9kg |
| Box Dimension(L×H×W) | 187×148×32mm |
Technical Sheet
| Input Signal Type | 4 Channel high-level input,4 Channel Low-Level input, external digital Bluetooth |
| Output Type | 6 Channel low-level output |
| Output Gain | Gain range: Mute,-59dB~6dB |
| Output Signal EQ |
10-band EQ for every channel, |
| Output Signal Crossover | Equipped with 2nd order high and low pass filter 1.Professional filter type:Butterworth, Bessel,Linkwitz-Riley 2. Filter Crossover Point: 20Hz~20kHz, Resolution 1Hz 3.Filter Slope setup:6dB/Oct ~ 30dB/Oct |
| Output Phase and Time Alignment | Adjust phase and time alignment for every output channel : Phase: In Phase or Out Phase(0°/180°); Time Alignment: 0.00 to 20.00 milliseconds, 0 to 692 inches. |
| Presets | Save 15 presets into the device. |
